Add a dropdown, checkbox or radio list

Wednesday, Jan 28, 2015

You may wish to create a multiple option list for those registering on your courses, to to use on process steps. These multiple options are either created manually, as in the example below eg. for a ‘how did you hear about us question or exist as internal lists eg. AVETMISS questions, countries or currencies. The following instructions show how to create a manual list that does not currently exist.

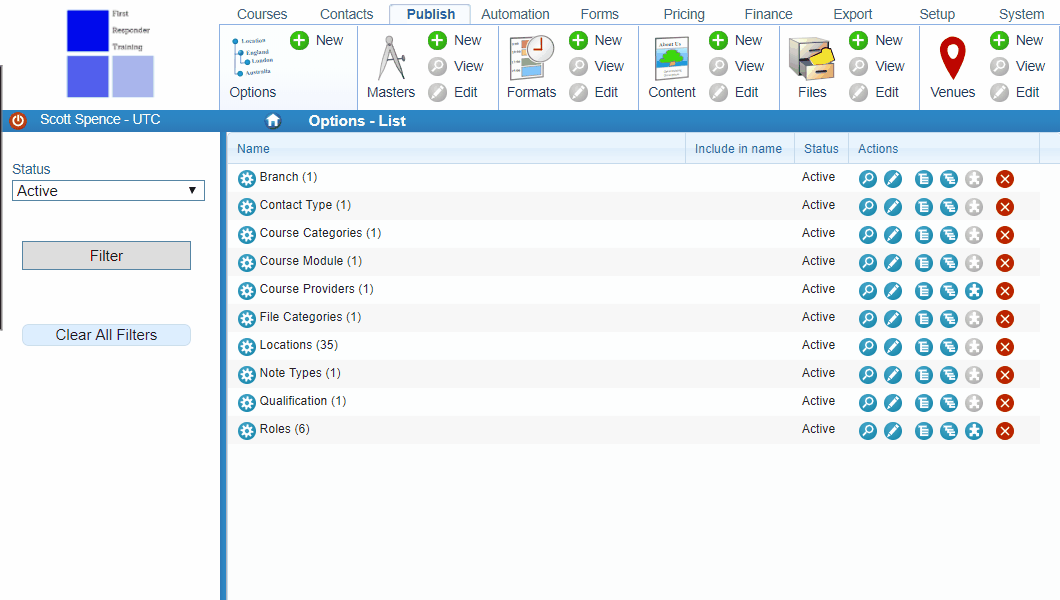

Here is an animation of the process to create the option, using ‘New’ for an option, then ‘Add a child’ then ‘Add after this node’.

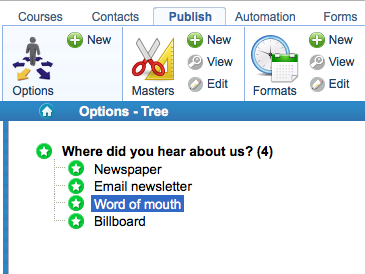

Create an option type ‘extension’ (no form is required), including each of the options you wish to include as children.

When creating a field choose one of the following types and select the extension option list created in (1):

  • Autocomplete

  • Checkbox list

  • Lookup list

  • Radio

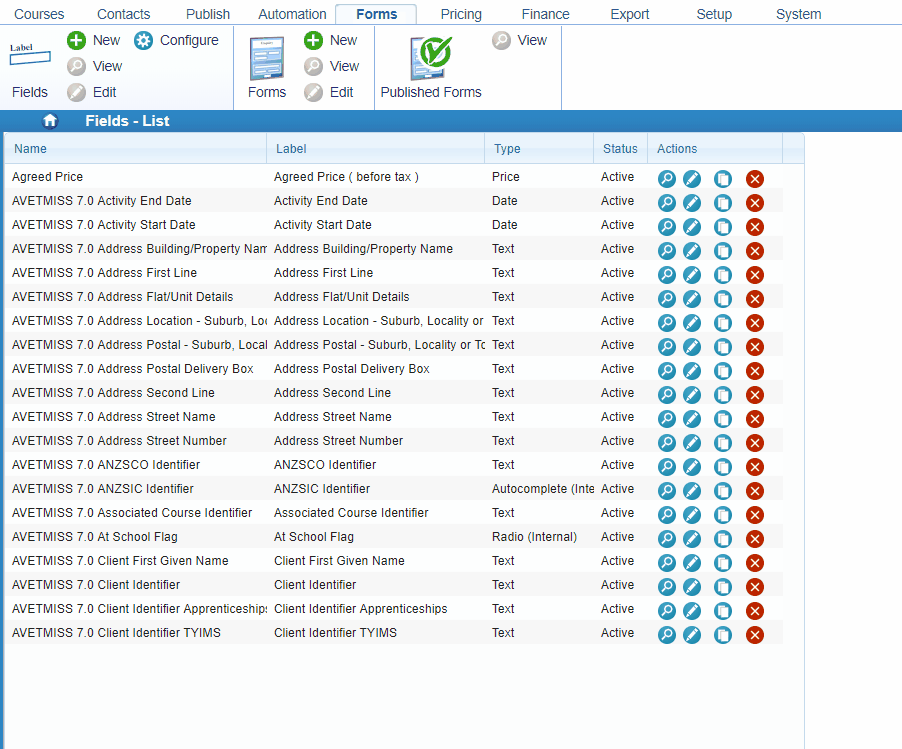

Here is an animation creating a lookup list:

Add the field to the form to be used.

Note
Updating the extensions option list will update the options on the field
